Signature Series
ZTK Obsidian Black Model
Blacked-out, purple-lit 1440p.
On the bench — building now
A blacked-out, purple-lit RGB showcase in the ASUS ROG Strix Helios — a Zen 5 Ryzen 5 9600X and an EVGA RTX 3070 FTW3 Ultra tear through high-refresh 1440p with ray tracing and DLSS, on the future-proof AM5 platform (DDR5-6000, PCIe 5.0, Wi-Fi 7). Liquid-cooled by a 360 AIO with a 4-inch live display and lit edge-to-edge by infinity-mirror ARGB behind smoked tempered glass. Hand-built in Cutler Bay — currently on the bench.
Performance profile
Specifications
- CPU
- AMD Ryzen 5 9600X (6C/12T · Zen 5 · AM5)
- Motherboard
- ASUS TUF Gaming X870-PLUS WiFi
- GPU
- EVGA RTX 3070 FTW3 Ultra 8GB
- Memory
- 32GB DDR5-6000 CL30 (T-Force Delta RGB)
- Storage
- 1TB NVMe Gen4 (Gigastone Game Turbo)
- Cooling
- ProFlow SE 360 ARGB · 4" LCD
- Case
- ASUS ROG Strix Helios GX601 · aluminum · RGB
- PSU
- Rosewill VMG 750W · 80+ Gold · full modular
- Service
- Free 1-year labor · parts at cost
Every spec is a starting point — swap components, change the case, or request a custom loop. We'll quote any configuration.
Anatomy of the build
Every part, chosen on purpose.
No filler, no leftover stock. Here's exactly what goes into the ZTK Obsidian Black Model — and why we picked it.
The chassis
ASUS ROG Strix Helios GX601 RGB
The Obsidian's shell is the ASUS ROG Strix Helios — a premium aluminum-framed showcase in brushed black, with 4mm smoked tempered glass across the front and both sides for a full, unbroken view. The Aura Sync RGB front panel glows the ROG cyber-text in purple to match the build, GPU support braces hold the 3070 dead level, and it swallows up to a 420mm radiator. Four 140mm fans come pre-installed on a built-in hub. A genuine flagship case — built to be seen from every angle.
- Frame
- Aluminum + 4mm tempered glass
- Fans
- 4× 140mm pre-installed + hub
- Cooling support
- Up to 420mm radiator
- GPU
- Vertical mount · support braces
- Lighting
- Aura Sync RGB front

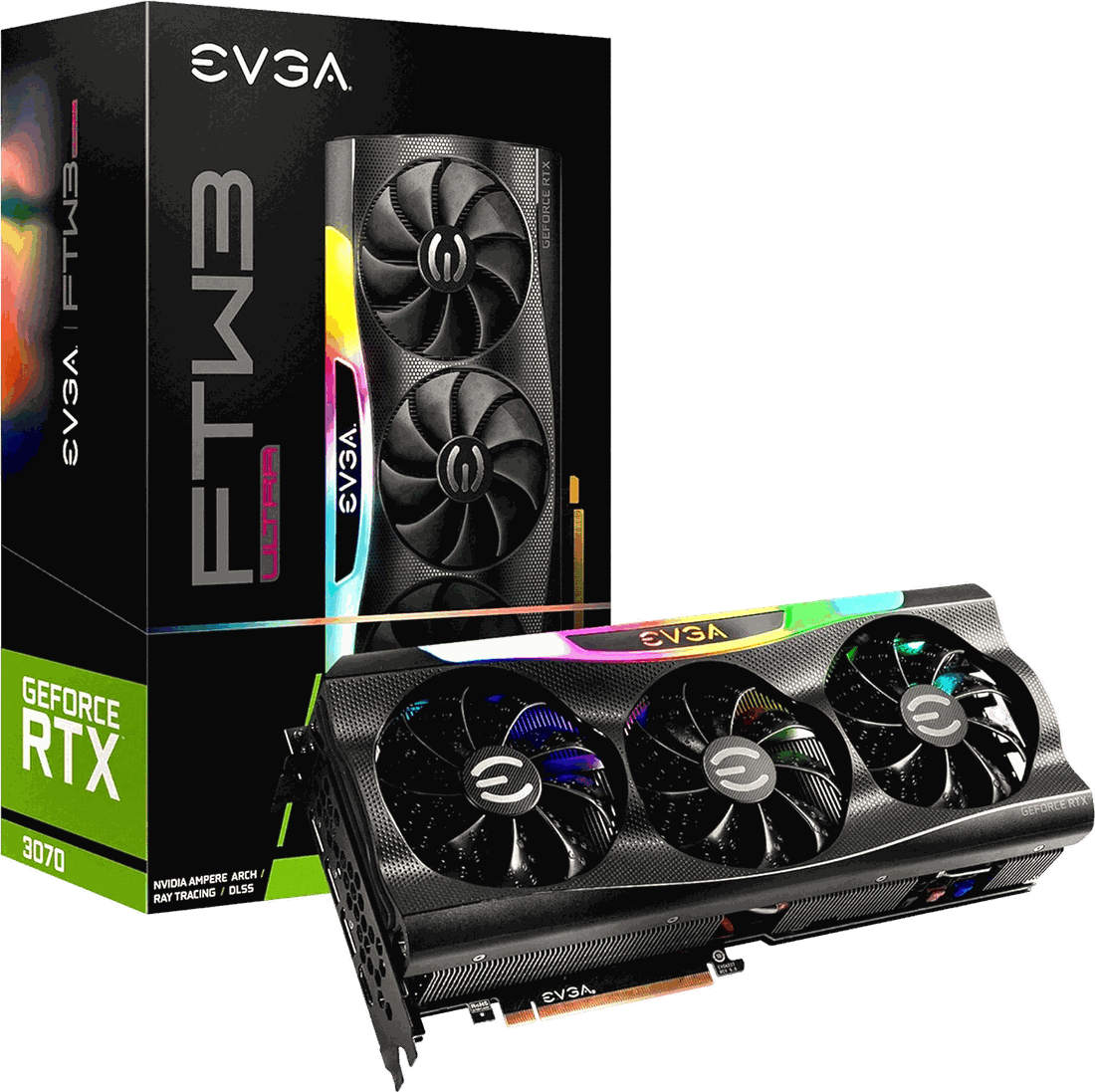

Graphics
EVGA RTX 3070 FTW3 Ultra
The engine — an EVGA RTX 3070 FTW3 Ultra, one of the best-cooled 3070s ever made. 8GB GDDR6 and Ampere RT cores deliver high-refresh 1440p with ray tracing and DLSS, while the iCX3 triple-fan cooler stays cool and quiet. ARGB across the top edge glows purple to match the build, with a full metal backplate for rigidity.
- GPU
- NVIDIA RTX 3070 · Ampere
- Memory
- 8GB GDDR6
- Cooling
- iCX3 triple-fan
- Lighting
- ARGB top edge
- Extras
- Metal backplate

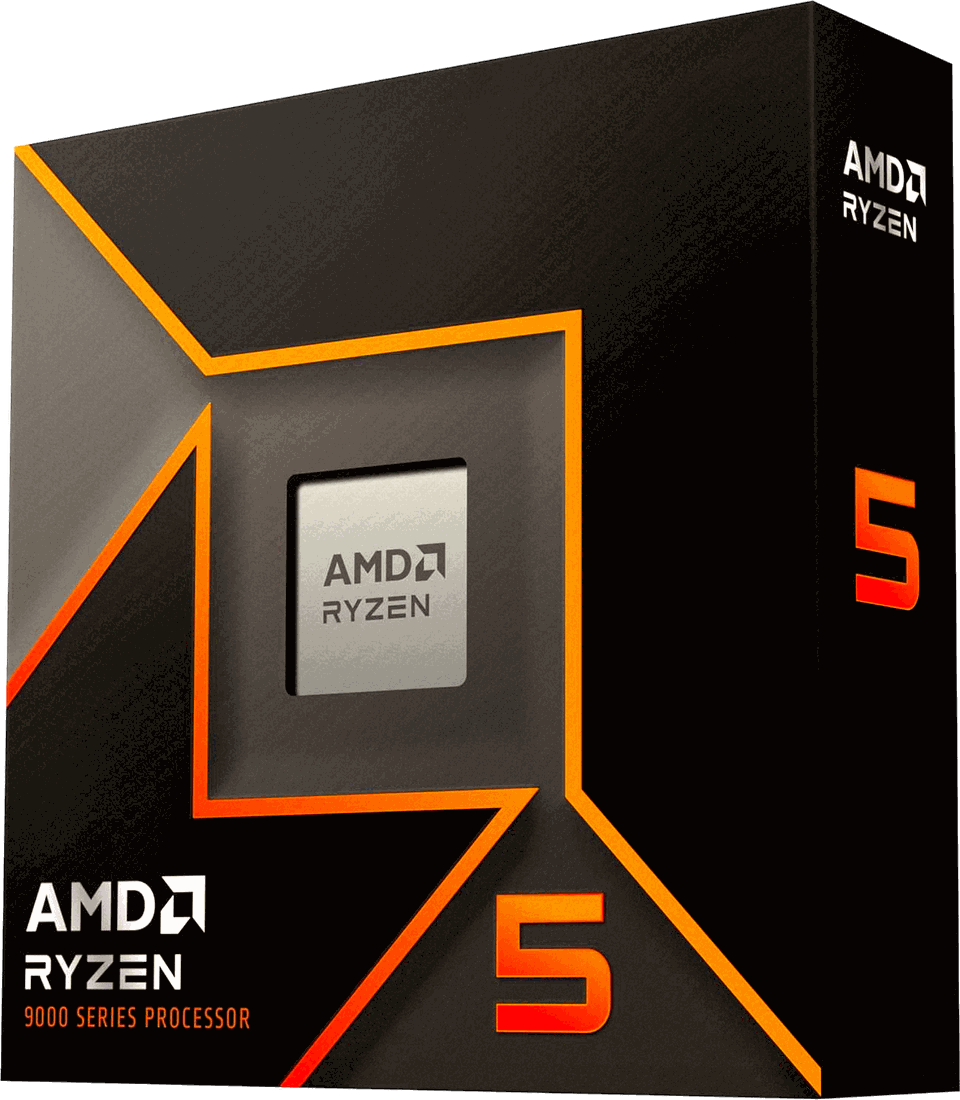

Processor
AMD Ryzen 5 9600X
Zen 5 gaming muscle. The Ryzen 5 9600X runs six cores and twelve threads up to 5.4GHz with class-leading IPC — it feeds the 3070 effortlessly for high-refresh gaming and stays cool and efficient. Unlocked on an X870 board, on the latest AM5 socket with years of upgrade headroom.
- Cores / threads
- 6 cores · 12 threads
- Clocks
- Up to 5.4GHz (unlocked)
- Cache
- 38MB
- Architecture
- Zen 5
- Socket
- AM5 · PCIe 5.0

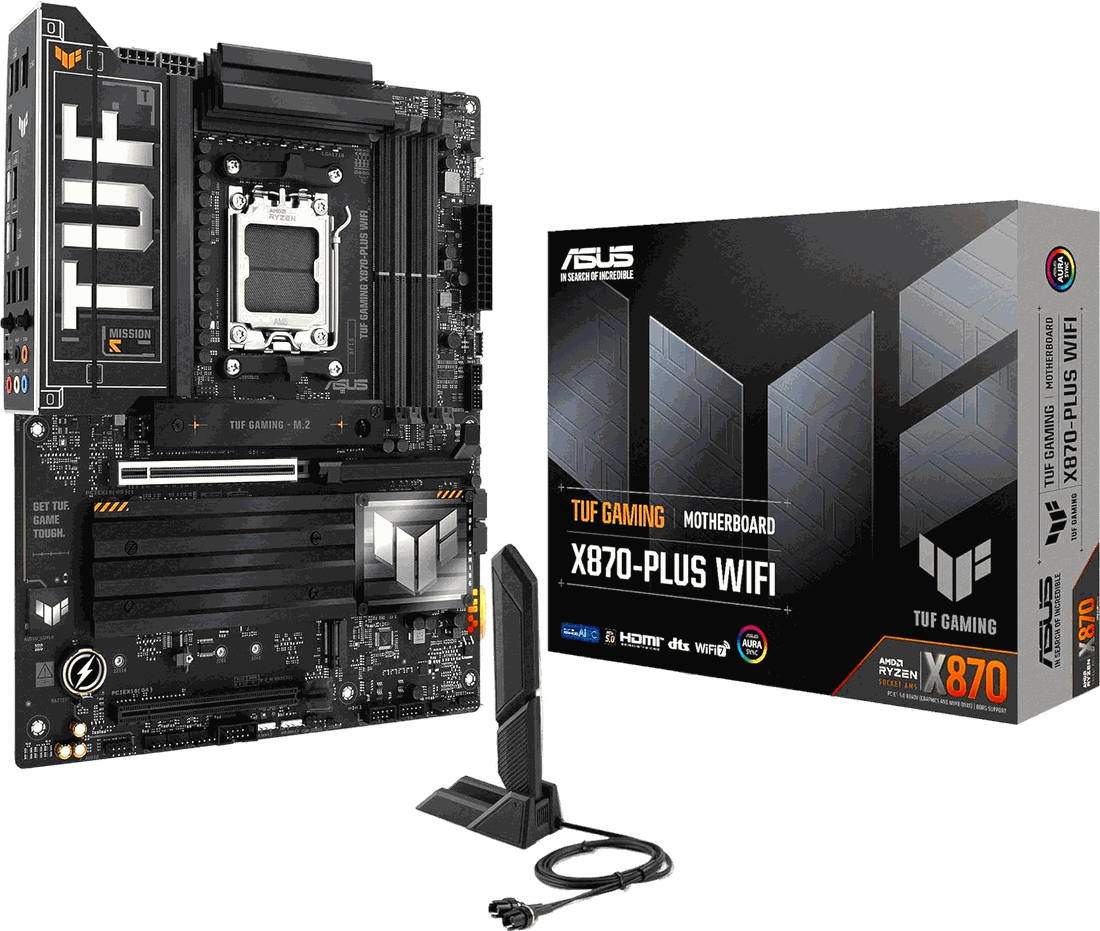

Motherboard
ASUS TUF Gaming X870-PLUS WiFi
A future-proof AM5 backbone — the ASUS TUF Gaming X870-PLUS. A 16+2+1, 80A power stage feeds the Ryzen rock-steady, with PCIe 5.0, four M.2 slots, Wi-Fi 7, 2.5G LAN, and USB4. Military-grade TUF components and a blacked-out aesthetic that disappears into the build.
- Chipset / socket
- AMD X870 · AM5
- Power
- 16+2+1 · 80A SPS
- Memory
- 4× DDR5
- Expansion
- PCIe 5.0 · 4× M.2
- Network
- Wi-Fi 7 · 2.5Gb LAN · USB4

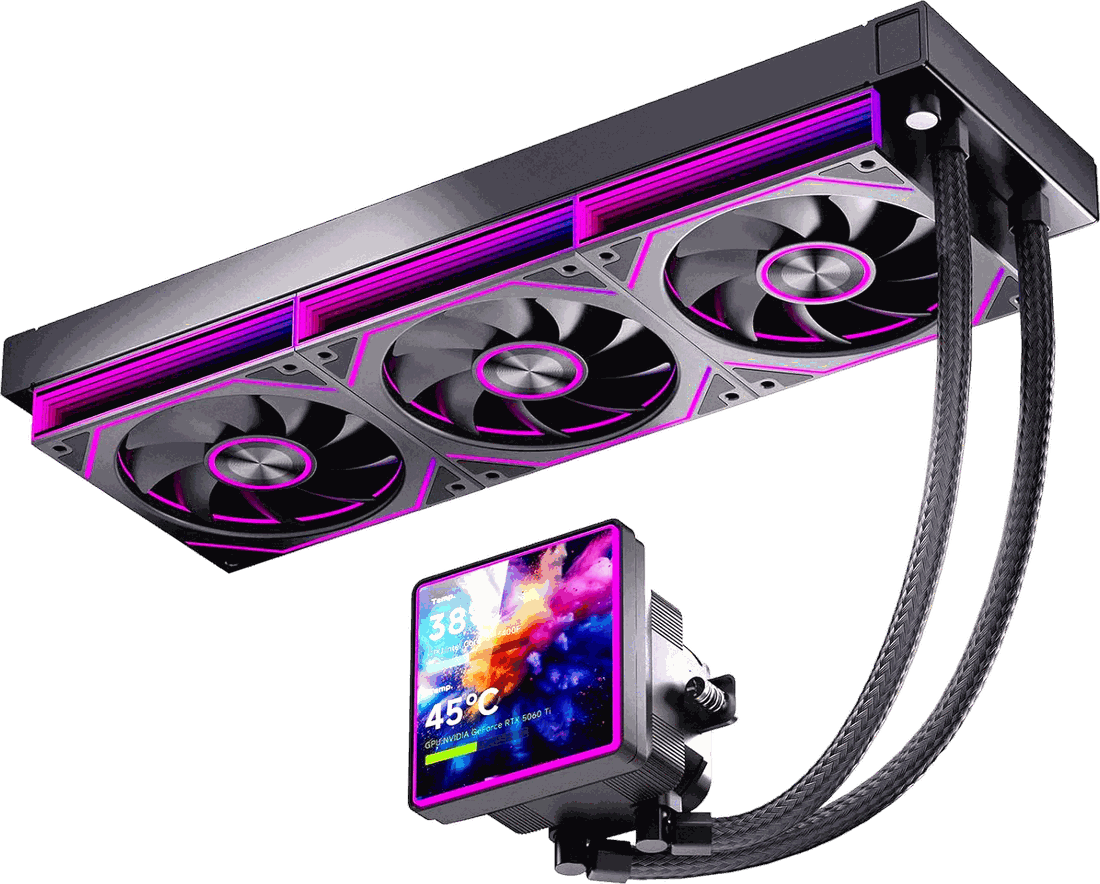

Cooling
ProFlow SE 360 ARGB
A 360mm liquid loop with a 4-inch LCD on the pump — live CPU/GPU temps, clocks, or custom art, rotating to any angle behind the glass. Triple infinity-mirror ARGB fans and dual-ring ARGB headers glow purple, and 320W of cooling capacity means the 9600X runs cold and silent.
- Type
- 360mm AIO liquid cooler
- Display
- 4" LCD · rotating
- Fans
- 3× 120mm infinity-mirror ARGB
- Capacity
- Up to 320W TDP
- Sockets
- AM5 · LGA1700/1851

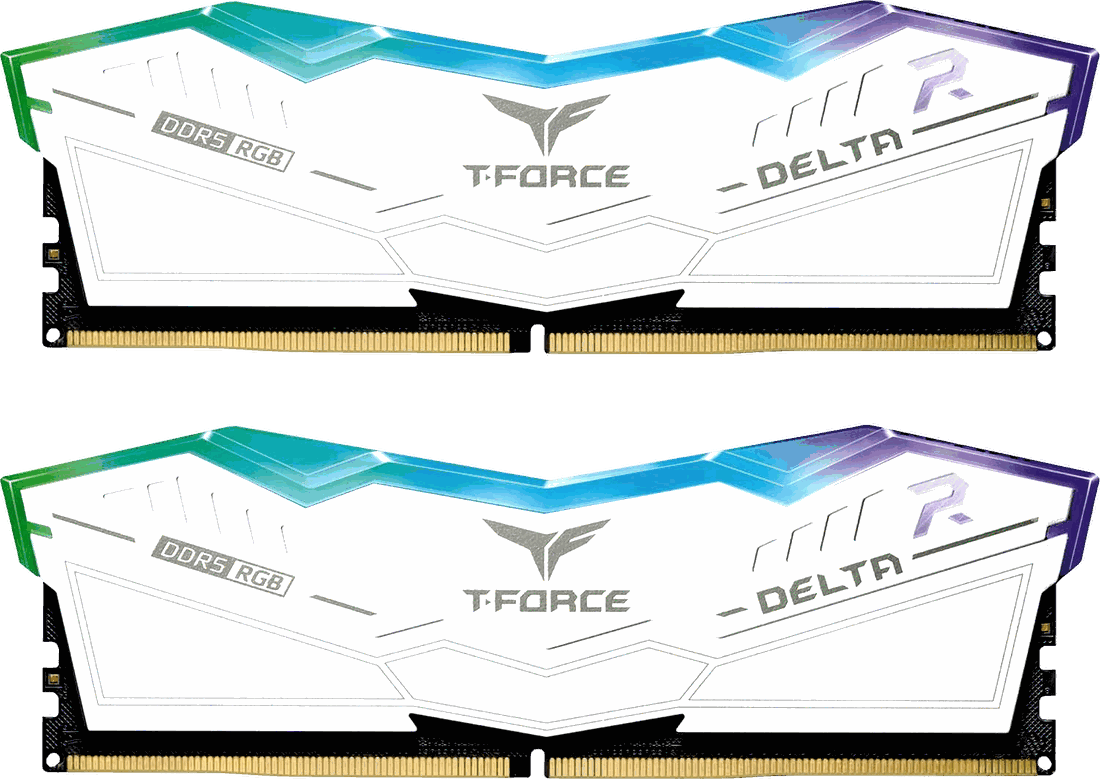

Memory
T-Force Delta RGB DDR5
32GB of DDR5-6000 CL30 — the AM5 sweet spot, with EXPO one-click tuning for full speed. The T-Force Delta's 120° RGB bar syncs purple to the rest of the build, and on-die ECC keeps it stable. Plenty for high-refresh gaming, streaming, and multitasking.
- Capacity
- 32GB (2×16GB)
- Speed
- DDR5-6000 CL30 · EXPO
- Lighting
- 120° RGB · synced
- Reliability
- On-die ECC
- Voltage
- 1.35V

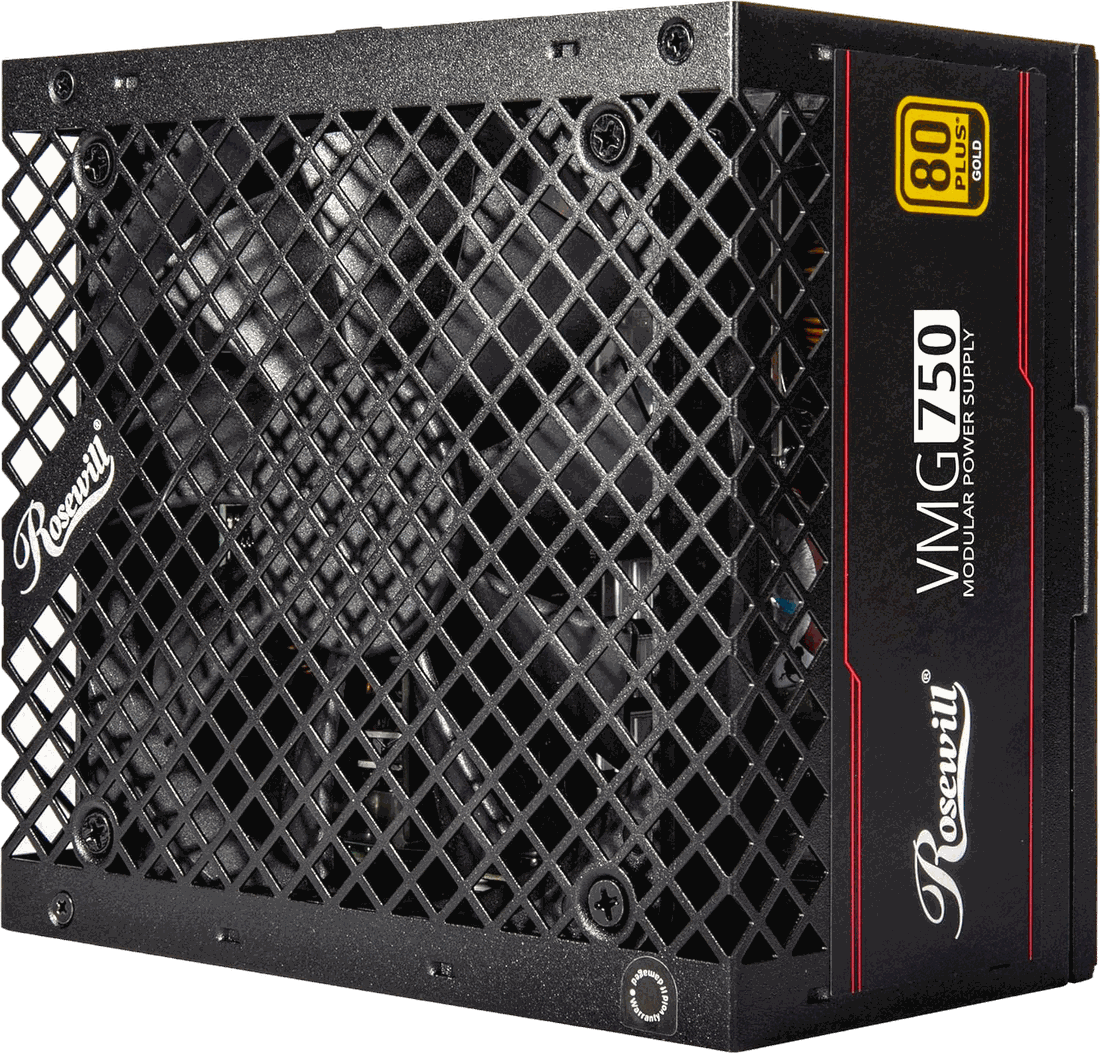

Power
Rosewill VMG 750W · 80+ Gold
Clean, premium power — 750W, 80+ Gold, and fully modular, so only the cables we need go in (and behind the H9's hidden chamber, you won't see them anyway). A native 12V-2x6 cable feeds the 3070 directly, with 100% Japanese capacitors and a 5-year warranty.
- Wattage
- 750W
- Efficiency
- 80 PLUS Gold
- Design
- Full modular
- Standard
- ATX 3.1 · PCIe 5.1
- Connector
- Native 12V-2x6 (600W)

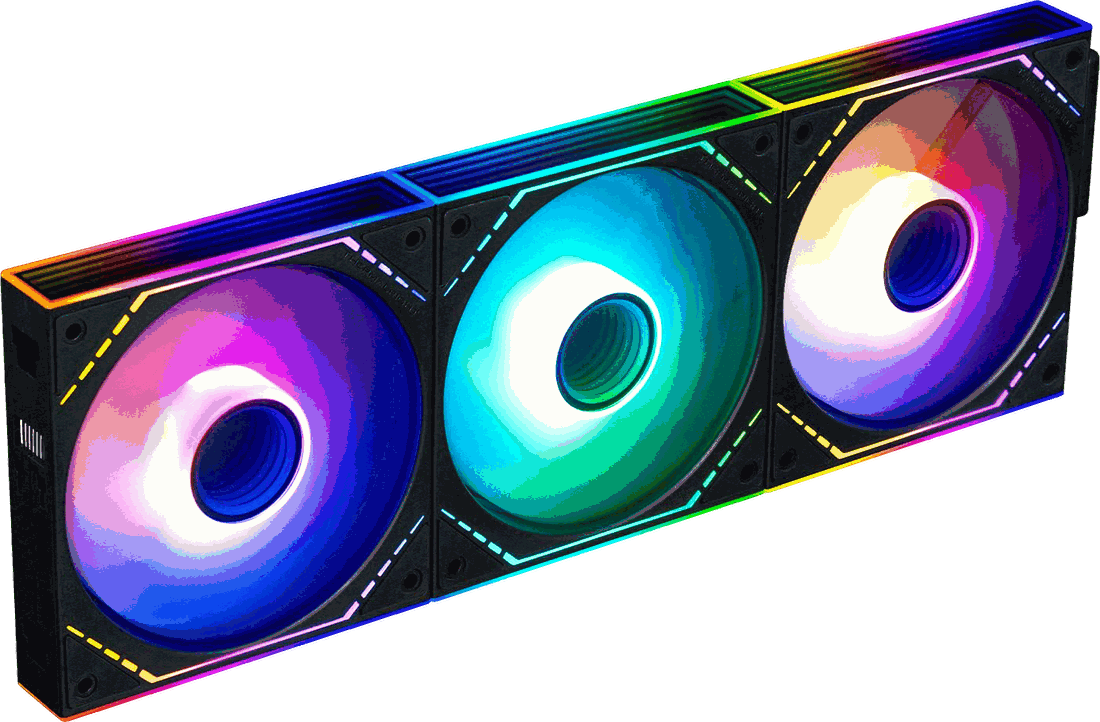

Airflow & lighting
Thermalright TL-M12Q-S X3
Tying the lighting together — three 120mm infinity-mirror ARGB fans that daisy-chain into one clean run, glowing purple in sync with the cooler, RAM, and GPU. PWM-controlled up to 2000RPM for real airflow with whole-system lighting unity.
- Fans
- 3× 120mm ARGB
- Lighting
- Infinity-mirror · synced
- Speed
- PWM · up to 2000 RPM
- Wiring
- Daisy-chain
- Sync
- 5V 3-pin ARGB

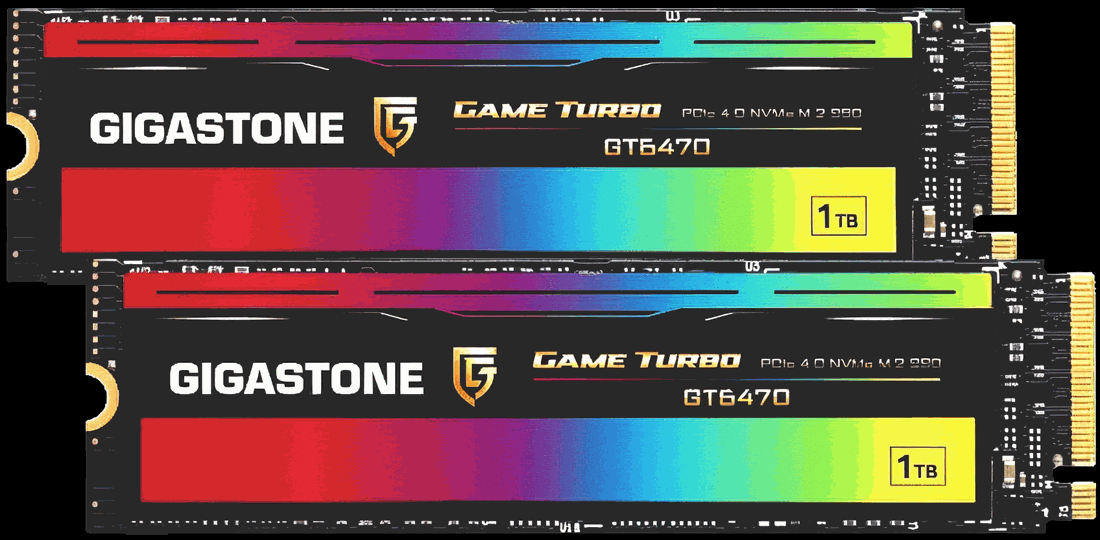

Storage
Gigastone Game Turbo 1TB
1TB of Gen4 NVMe — up to 7,300MB/s for near-instant boots and game loads, with 3D NAND and SLC caching for sustained speed. The RGB heatsink keeps it cool and adds to the glow. Room for Windows and a real game library.
- Capacity
- 1TB
- Interface
- PCIe Gen4 ×4 NVMe
- Seq. read
- Up to 7,300 MB/s
- NAND
- 3D NAND · SLC cache
- Extras
- RGB heatsink
