Flagship Series
ZTK Phantom White Model
The all-white creator flagship.
On the bench — building now
The all-white halo build — and a genuine content-creation, streaming, and AI workhorse. A 24-core Intel Core Ultra 7 270K Plus and a 16GB Intel Arc A770 tear through editing, rendering, AV1 streaming, and AI workloads, with strong 1440p gaming on top. It's built on the newest LGA1851 platform — DDR5, PCIe 5.0, Wi-Fi 7, Thunderbolt 4 — and wrapped in the white Geometric Future Model-5 with a back-connect board, so the interior shows almost zero cabling. Currently on the bench in Cutler Bay.
Performance profile
Specifications
- CPU
- Intel Core Ultra 7 270K Plus (24C · 8P+16E · LGA1851)
- Motherboard
- MSI PRO Z890-S WiFi PZ · back-connect
- GPU
- Intel Arc A770 16GB (GUNNIR Photon · white)
- Memory
- 32GB DDR5-6000 (Lexar Thor Z RGB)
- Storage
- 2TB Crucial T500 · PCIe Gen4 NVMe (7,400 MB/s)
- Cooling
- Thermalright FW PRO 360 ARGB · 2.73" LCD
- Case
- Geometric Future Model-5 (White)
- Connectivity
- Wi-Fi 7 · BT 5.4 · 2.5Gb LAN · Thunderbolt 4
- PSU
- Rosewill VSB 750W · 80+ Bronze · ATX 3.1
- Service
- Free 1-year labor · parts at cost
Every spec is a starting point — swap components, change the case, or request a custom loop. We'll quote any configuration.
Anatomy of the build
Every part, chosen on purpose.
No filler, no leftover stock. Here's exactly what goes into the ZTK Phantom White Model — and why we picked it.
The chassis
Geometric Future · Model 5 (White)
Every ZTK machine starts with a real showcase chassis — and the Phantom uses the white Geometric Future Model 5. Tool-free tempered glass on both sides keeps the all-white interior on full display, and the heavy steel frame stays silent and rattle-free for years. Paired with the back-connect motherboard, the bulk of the wiring routes out of sight — so the PSU shroud and our hand-combed sleeved cabling become part of the show, not clutter. Just clean hardware behind the glass. Rated for up to a 420mm radiator and ten 120mm fans, so the 360 AIO and full ARGB layout fit with room to spare.
- Panels
- Tool-free tempered glass, both sides
- Cooling support
- Up to 420mm radiator · 10× 120mm fans
- Motherboard
- Up to E-ATX
- GPU clearance
- Up to 460mm
- PSU
- Modular up to 160mm · display shroud
- Frame
- 0.8–1.2mm premium steel
Graphics

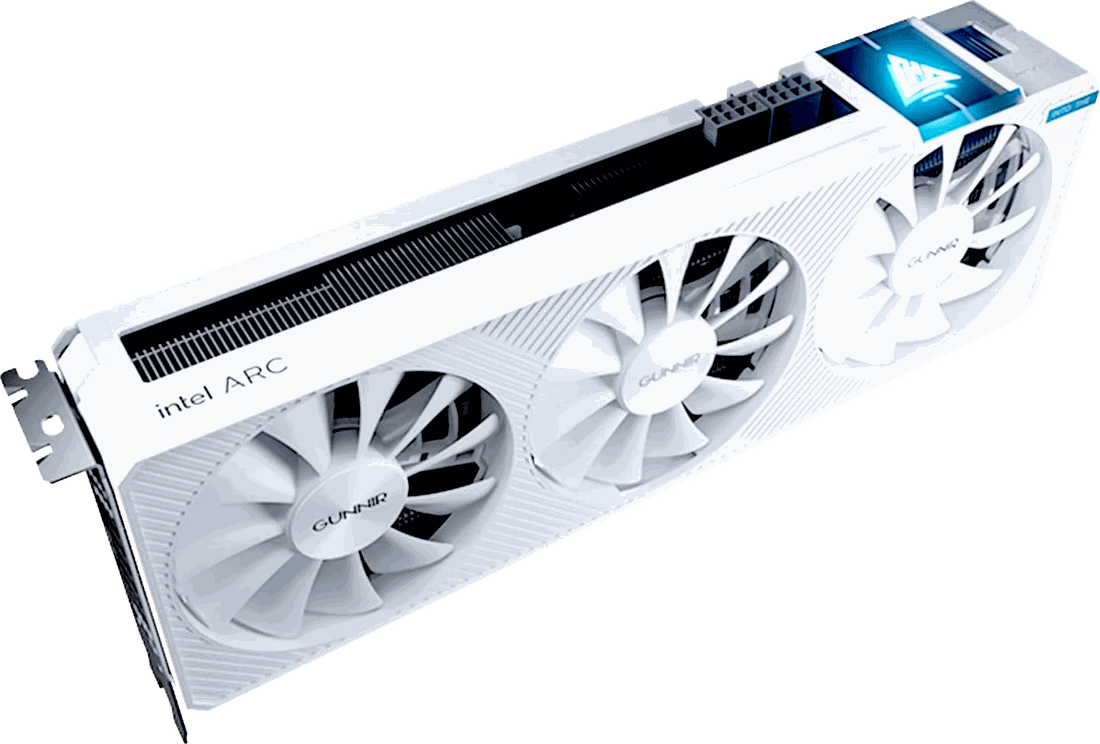

GUNNIR Intel Arc A770 Photon 16GB OC (White)
The Phantom's engine for creation. The Arc A770 carries a full 16GB of GDDR6 on a 256-bit bus — rare memory headroom at this class — plus a hardware AV1 encoder that makes streaming and video export effortless, and XeSS AI upscaling for sharp, high-FPS gaming. GUNNIR's white Photon triple-fan cooler with five nickel-plated heatpipes keeps it cool and quiet, and the all-white shroud color-matches the board and case exactly. Honest framing: in raw gaming it's a strong 1080p/1440p card — its 16GB, AV1 engine, and XMX AI cores are what make it punch hardest for editors, streamers, and AI work.
- Architecture
- Intel Xe HPG · ACM-G10 · 32 Xe-cores
- Memory
- 16GB GDDR6 · 256-bit · 512 GB/s
- Media
- Hardware AV1 encode/decode · XMX AI
- Cooling
- Triple 90mm · 5 nickel heatpipes (white)
- Power
- PCIe 4.0 · 8+6-pin
- Outputs
- 3× DP 2.0 · HDMI 2.0 · XeSS
Motherboard

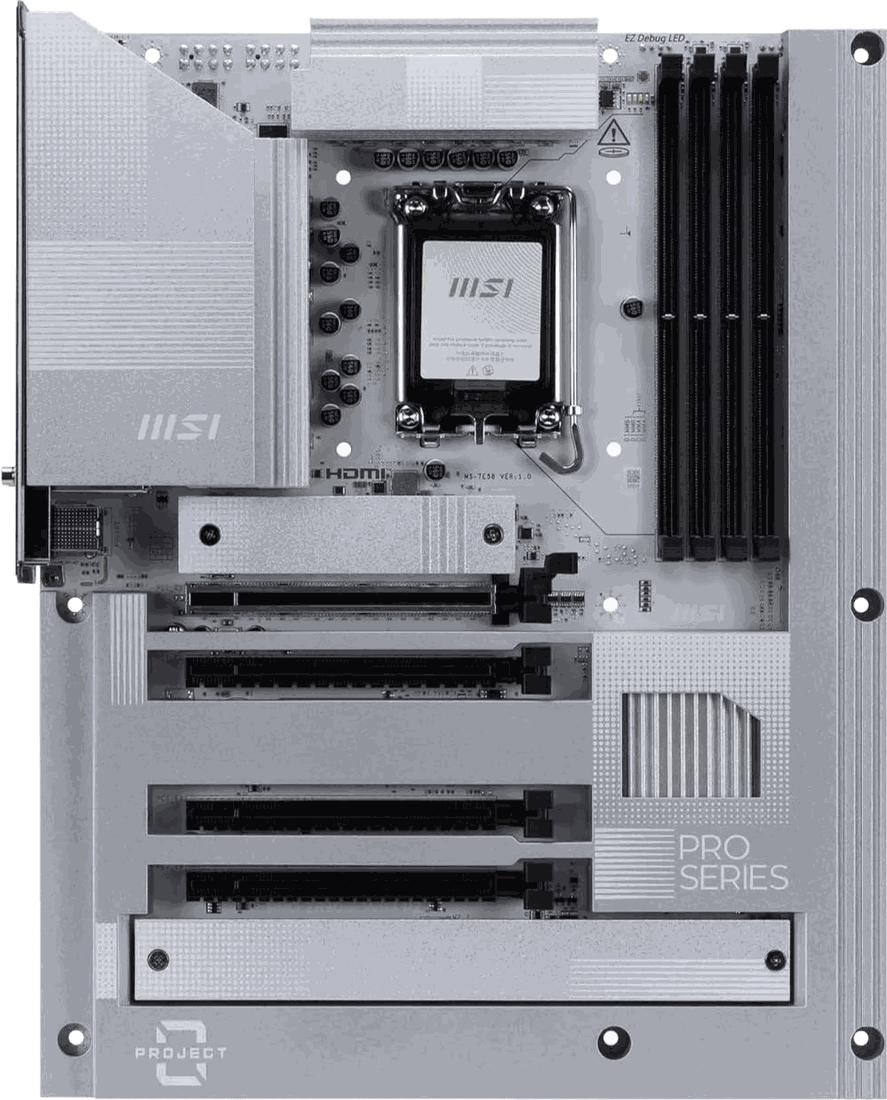

MSI PRO Z890-S WiFi PZ (Back-Connect)
The backbone — and the secret behind the clean look. The PRO Z890-S WiFi PZ is a back-connect 'Project Zero' board: every power and data cable plugs into the BACK of the tray, so the bulk of the wiring routes behind the board and the front stays clean. A 12-rail Duet power stage feeds the 24-core chip rock-steady, with PCIe 5.0 graphics, a Gen5 M.2 plus two Gen4, DDR5 up to 8600+ OC, Wi-Fi 7, 2.5G LAN, and Thunderbolt 4. Future-proof and genuinely gorgeous in white.
- Chipset / socket
- Intel Z890 · LGA1851 · ATX
- Power
- 12 Duet Rail (P-PAK) · Core Boost
- Memory
- 4× DDR5 · up to 8600+ MT/s (OC)
- Expansion
- PCIe 5.0 ×16 · M.2 Gen5 + 2× Gen4
- Network
- Wi-Fi 7 · BT 5.4 · 2.5Gb LAN
- I/O
- Thunderbolt 4 · back-connect headers
Processor

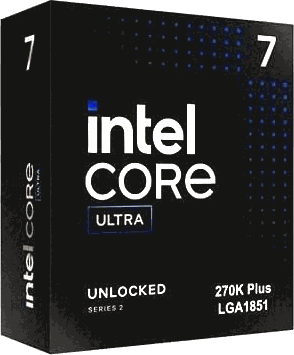

Intel Core Ultra 7 270K Plus
Twenty-four cores of Arrow Lake — eight performance cores plus sixteen efficient cores, boosting to 5.5GHz. This is where the Phantom earns the word 'beast': it tears through multi-core renders, code compiles, heavy timelines, and a wall of browser tabs while a game runs in the foreground. Unlocked on a Z890 board means it runs wide open, and the new architecture sips power and runs cooler than the older i9s it replaces.
- Cores / threads
- 24 cores · 8P + 16E
- Clocks
- Up to 5.5GHz (unlocked)
- Cache
- 36MB L3 · 40MB L2
- Socket
- LGA1851 · PCIe 5.0
- Memory
- DDR5-7200 native · up to 256GB
- Graphics
- Intel Graphics (integrated)
Memory

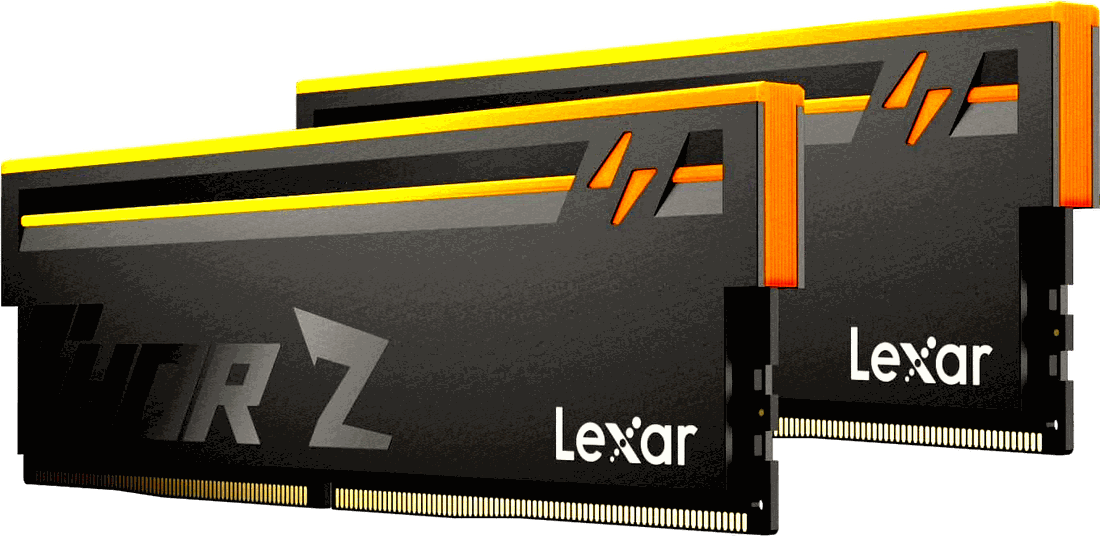

Lexar Thor Z RGB DDR5
32GB of DDR5-6000 — the proven, rock-stable sweet spot for Arrow Lake (we run the kit at its rated spec, no inflated numbers). The Thor Z modules carry on-die ECC and a dedicated PMIC for clean power delivery, with a top RGB bar that syncs to the rest of the build. Plenty of room for big timelines, virtual machines, and heavy multitasking.
- Capacity
- 32GB (2× 16GB)
- Speed
- DDR5-6000 · XMP 3.0 + EXPO
- Voltage
- 1.35V
- Reliability
- On-die ECC · PMIC
- Lighting
- RGB top bar · synced
Storage

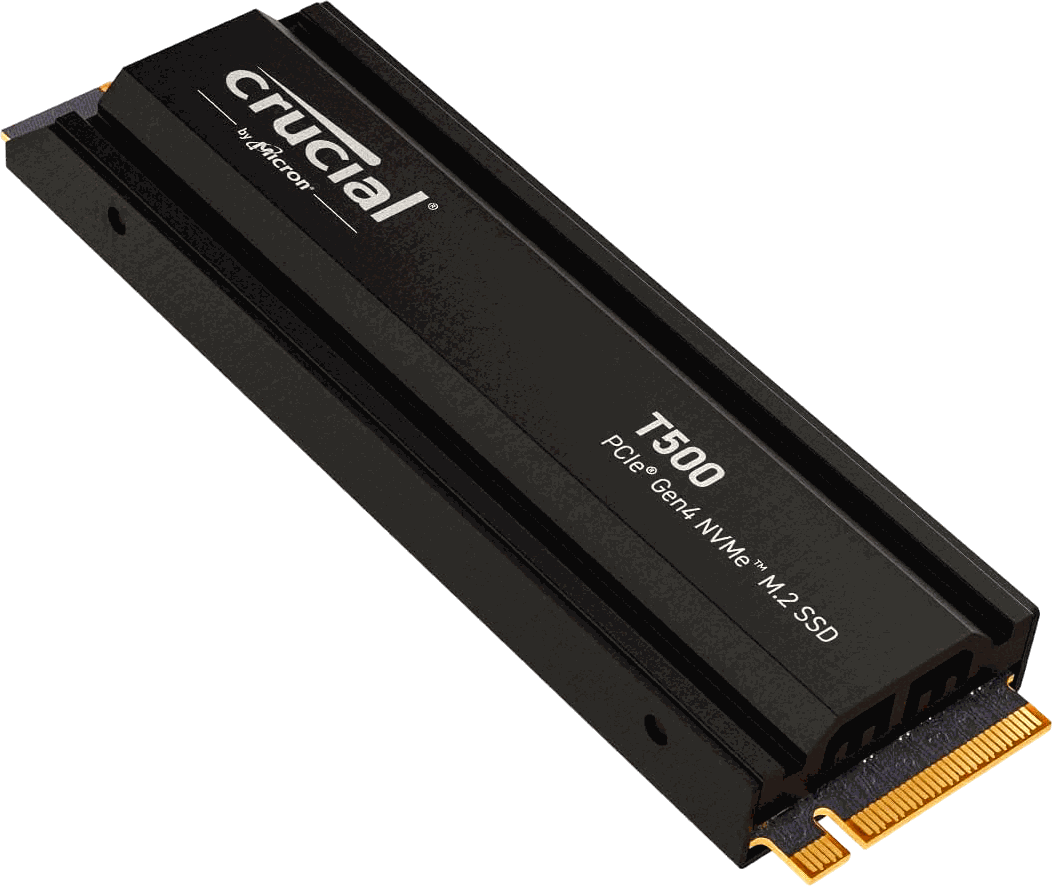

Crucial T500 2TB · PCIe Gen4 NVMe
A full 2TB of Gen4 NVMe — Crucial's T500, one of the fastest TLC drives going at up to 7,400MB/s. The integrated heatsink keeps it from throttling during big transfers and long renders, and 2TB means Windows, your creative apps, and a real game library all live on fast storage with room to grow. Micron-grade endurance, not bargain-bin flash.
- Capacity
- 2TB
- Interface
- PCIe Gen4 ×4 NVMe · M.2 2280
- Seq. read
- Up to 7,400 MB/s
- Seq. write
- Up to 7,000 MB/s
- NAND
- Micron TLC · integrated heatsink
Cooling

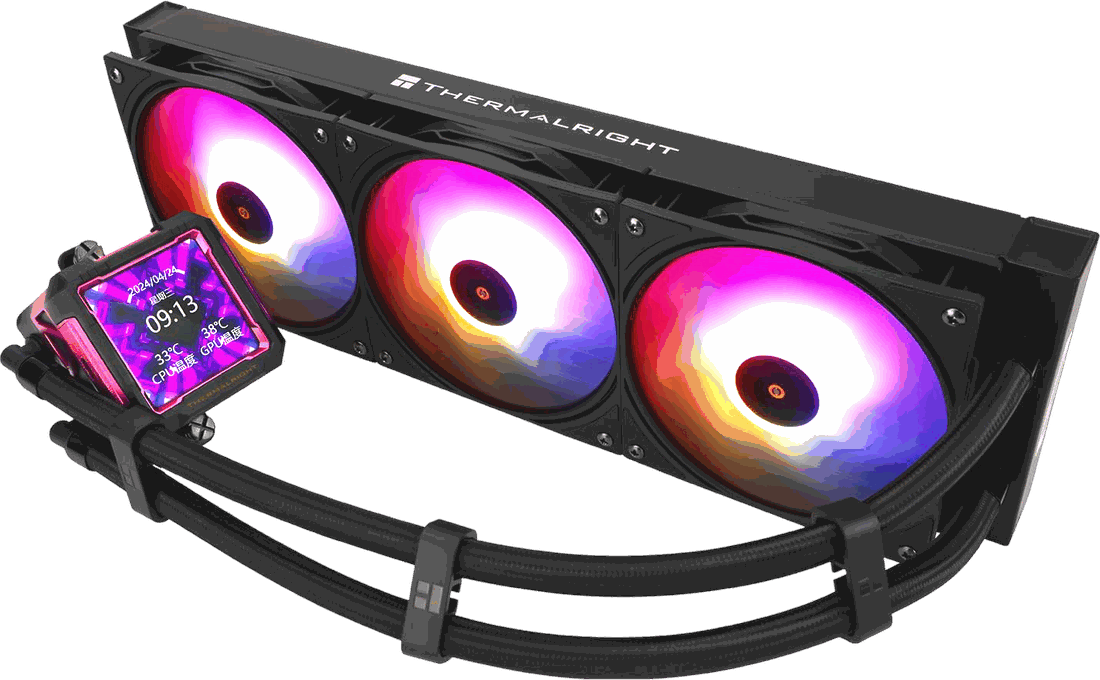

Thermalright FW PRO 360 ARGB
A 360mm liquid loop to match the 24-core chip — keeping it cool and near-silent even under sustained all-core load, with years of thermal headroom. The magnetic 2.73-inch IPS LCD on the pump head shows live CPU/GPU temps, clocks, or any art you choose, right behind the glass. Triple ARGB fans tie into the lighting. Cooling and centerpiece in one.
- Type
- 360mm AIO liquid cooler
- Display
- 2.73" IPS LCD · 320×320 · magnetic
- Fans
- 3× 120mm ARGB PWM
- Sockets
- Intel LGA1851/1700 · AMD AM5
- Head
- Magnetic cold head
Cabling

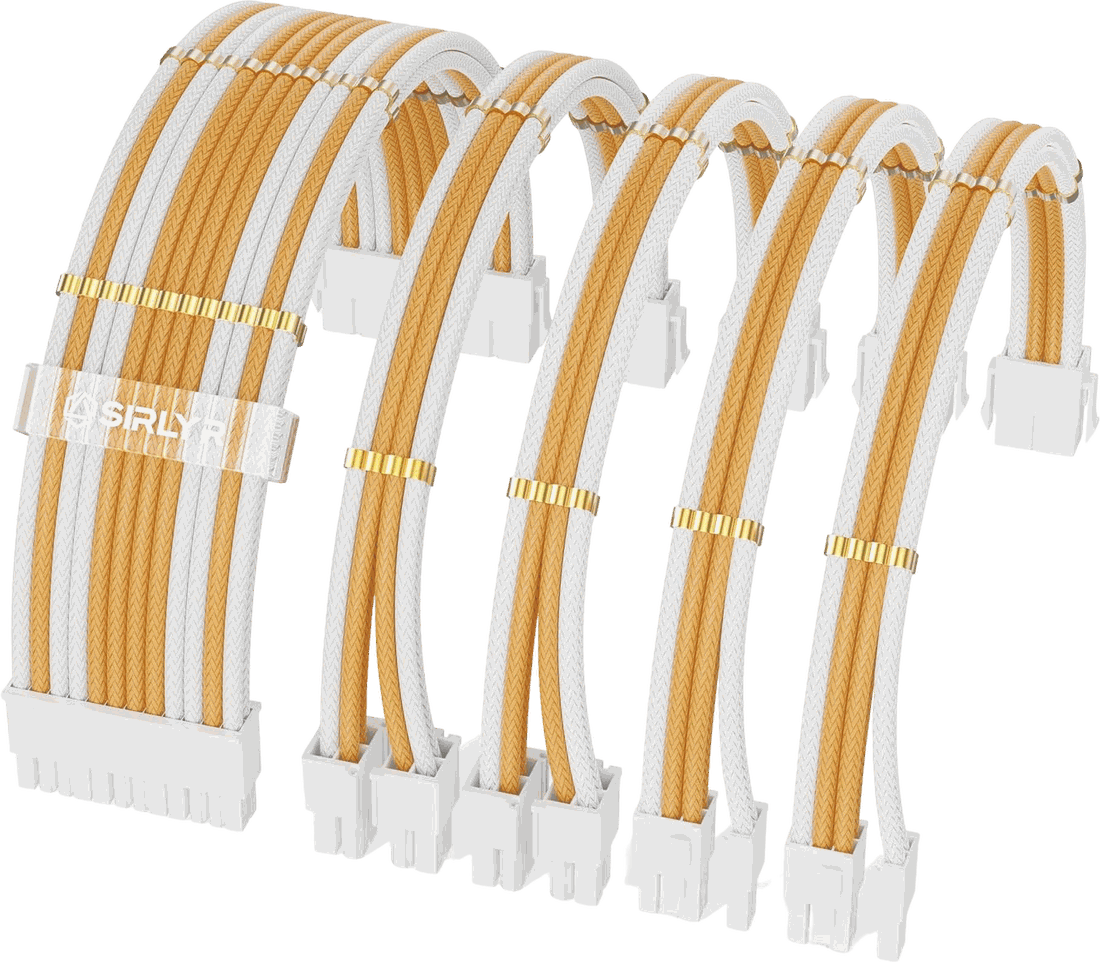

Sirlyr Sleeved Cable Extensions (White & Gold)
The detail that separates a build from a beast. We dress the visible power runs in Sirlyr's premium sleeved extensions — a 24-pin ATX, dual CPU/EPS, and dual PCIe/GPU set in a white-and-gold weave with pre-installed metal combs that hold every wire dead straight. It color-matches the white interior while the gold adds a warm, custom accent you won't find on a store-bought PC. Hand-combed and hand-routed, every time.
- Kit
- 24-pin ATX · 2× CPU/EPS · 2× PCIe/GPU
- Sleeving
- High-density braided · white & gold
- Combs
- Pre-installed metal cable combs
- Finish
- Hand-combed & hand-routed by ZTK
Power

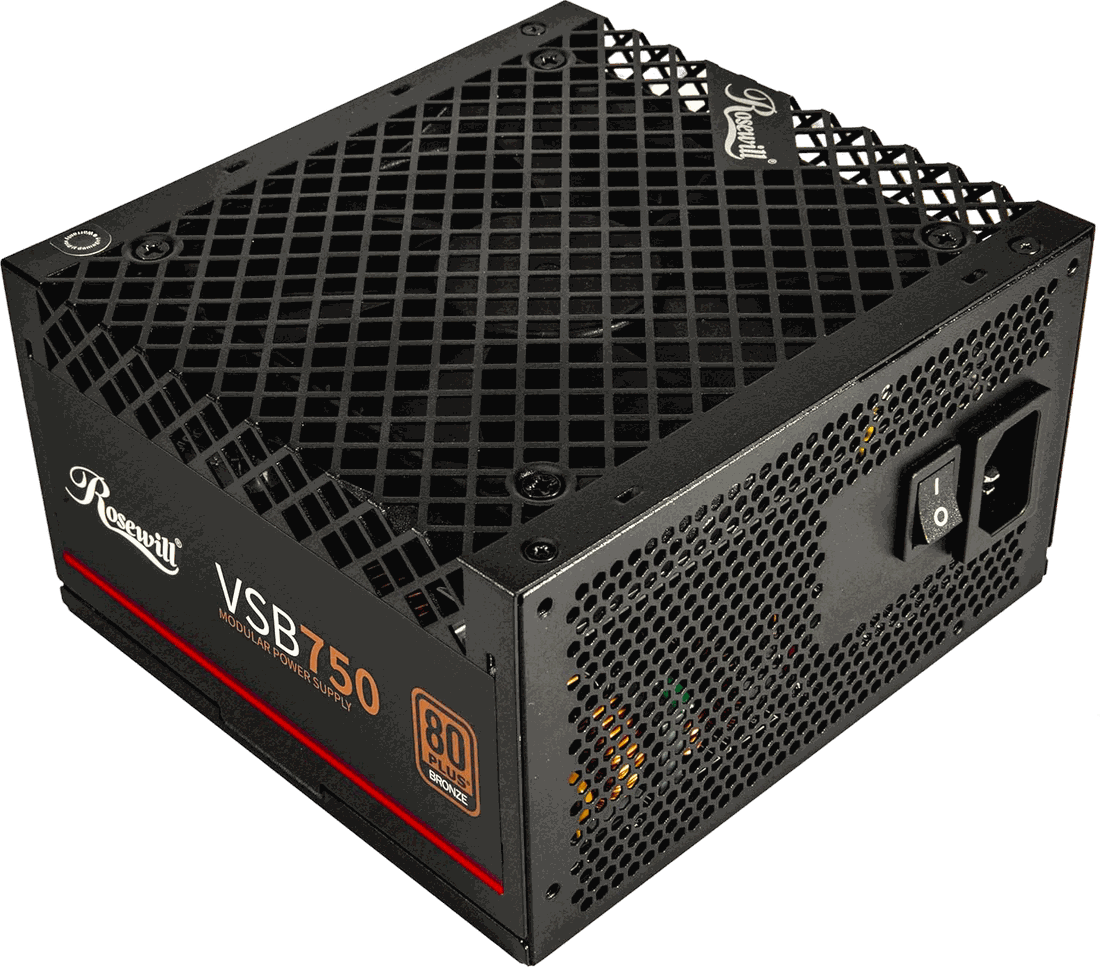

Rosewill VSB 750W · 80+ Bronze
Clean, modern power. The VSB 750 is 80+ Bronze and fully ATX 3.1 ready, with a native 12V-2x6 cable that feeds the GPU directly — no daisy-chained adapters. 105°C Japanese capacitors, a six-mode protection suite, and a 5-year warranty mean it's built to last as long as the machine. Semi-modular, so only the cables we need go in — and with the back-connect board, you won't see them anyway.
- Wattage
- 750W
- Efficiency
- 80 PLUS Bronze
- Standard
- ATX 3.1 · PCIe 5.1
- Connector
- Native 12V-2x6 (600W)
- Capacitors
- 105°C Japanese
- Warranty
- 5-year manufacturer
Lighting & control
120mm ARGB Fans + 9-Port Hub
Tying the lighting together — daisy-chained 120mm infinity-mirror ARGB fans that link pin-to-pin, so one cable feeds the whole cluster and the inside of the case stays clean. Bionic blades move real air (up to 58 CFM) while staying quiet on anti-resonance pads, and a 9-port hub with remote keeps every fan and light in 5V ARGB sync — forward and reverse versions so the pretty side always faces out.
- Fans
- 120mm ARGB · infinity-mirror
- Airflow / noise
- up to 58.36 CFM · ≤29 dBA
- Speed
- PWM 800–2000 RPM
- Wiring
- Daisy-chain · one cable per cluster
- Hub
- 9-port ARGB + PWM · SATA powered
- Sync
- 5V 3-pin ARGB · all major boards
Airflow
DARKROCK R140 ARGB (White)
The finishing touch — 140mm infinity-mirror ARGB fans in both reverse- and forward-blade versions, so the clean side always faces out through the glass whichever way they mount. PWM-controlled for silence at idle and real airflow under load, on long-life hydraulic bearings. They tie the whole white build together.
- Size
- 2× 140mm
- Lighting
- ARGB · infinity-mirror
- Blades
- Reverse / Forward (clean-side-out)
- Control
- PWM
- Bearing
- HDB hydraulic · long-life
- Finish
- White
